Infantry systems · 5.56×45 mm · Mk1

AIA-AR-5.56×45-Mk1-[BL]

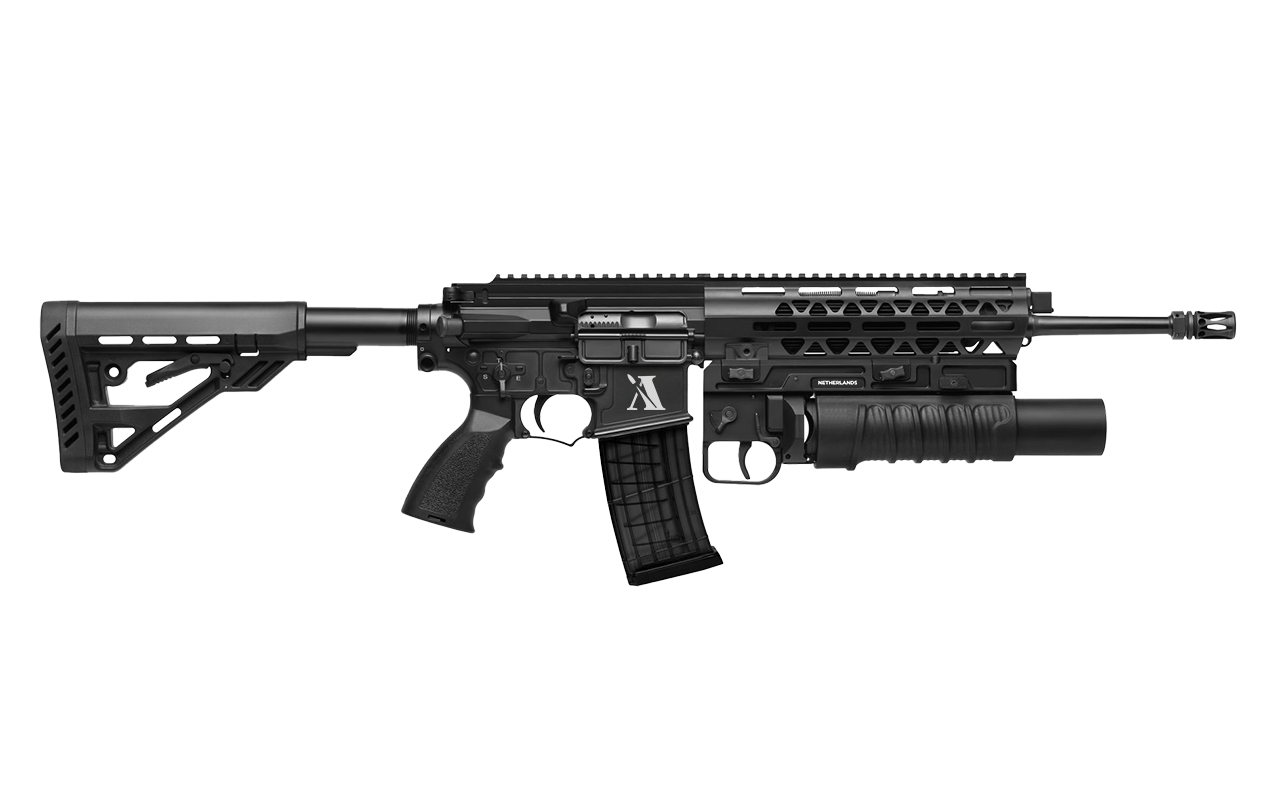

The AIA-AR-5.56×45-Mk1-[BL] is a modular 5.56×45 mm infantry rifle for professional defence, law-enforcement and specialist applications. Three barrel lengths support compact, general-purpose and extended configurations.

The system uses short-stroke gas-piston operation, a three-position gas regulator and a free-floating, hammer-forged, chrome-lined barrel. The upper receiver provides a continuous accessory rail, with a modular handguard and adjustable stock.

Technical data

Overall lengths are shown with the stock retracted and extended. Weights are approximate, weapon only.

BARRELOVERALL · RETRACTEDOVERALL · EXTENDEDWEIGHT
292 mm / 11.5 in700 mmApprox. 780 mmApprox. 2.86 kg
368 mm / 14.5 in775 mmApprox. 855 mmApprox. 2.95 kg
406 mm / 16 in815 mmApprox. 895 mmApprox. 3.00 kg

Specification summary

ITEMSPECIFICATION
Calibre5.56×45 mm NATO
Operating systemShort-stroke gas piston; three-position regulator for regular, suppressed and adverse-condition settings
BarrelHammer-forged, chrome-lined, free-floating; 6 right-hand grooves; 1:7 in twist
Rate of fireApprox. 700–1,100 rounds per minute
MagazineInterchangeable 5.56 mm NATO-pattern steel, aluminium or polymer magazines
ControlsAmbidextrous safety, magazine release, bolt catch and charging handle
Accessory interfacesContinuous upper Picatinny rail; M-LOK interfaces at 3, 6 and 9 o’clock
Stock and finishAdjustable telescopic polymer stock; black or flat dark earth finish options

System details

Gas system

Three-position regulation

The regulator offers settings for regular operation, suppressed use and adverse conditions.

Receiver and handguard

Modular accessory mounting

A continuous top rail and handguard mounting interfaces support the selected sighting and accessory setup.

Controls and stock

Ambidextrous handling

Primary controls are accessible from either side. The telescopic stock adjusts to the user and configuration.

Configuration

Three barrel lengths

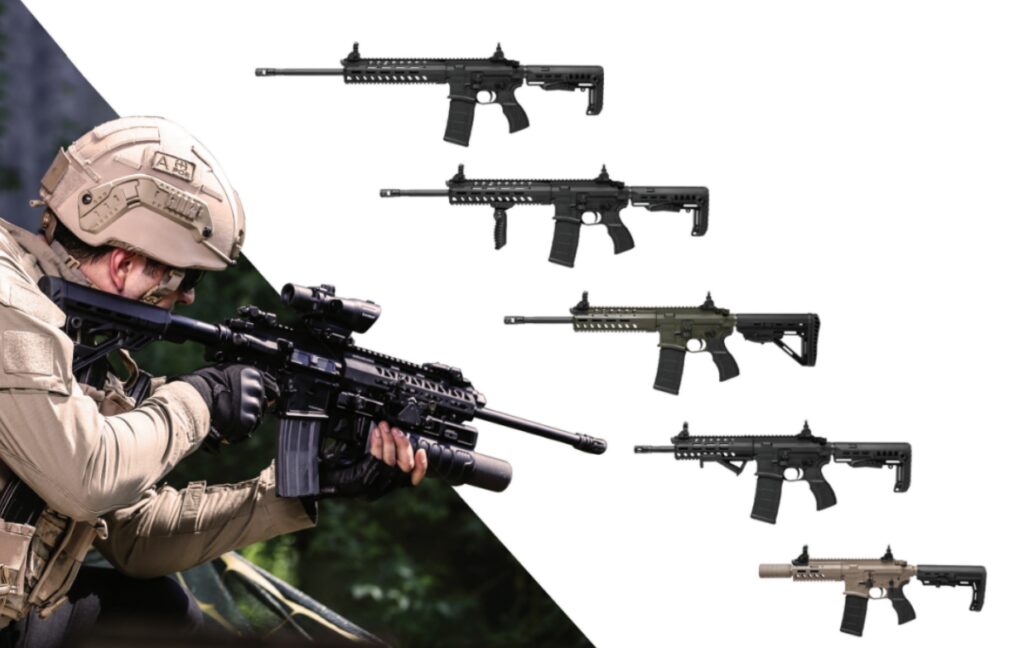

Choose 11.5, 14.5 or 16 in barrel options. Dimensions and weight vary by selected configuration.

i

Technical values are approximate and may vary with configuration. Confirm final dimensions, compatibility and specifications against the applicable product configuration and contractual documentation.

Technical Specifications

Specification Details
Operating Principle Gas piston operated, Short Stroke
Caliber 5.56×45 mm NATO & .223 Remington
Barrel Lengths 457 mm (18″), 406 mm (16″), 368 mm (14.5″), 292 mm (11.5″), 190 mm (7.5″)
Overall Length 915 mm (36″)
Weight 3,300 g (7.25 lbs)
Firing Mode Semi-automatic and Full-automatic
Twist Rate 6 RH, 1:7″
Barrel Type Cold Hammer Forged
Magazine Capacity 30 rounds
Stock Adjustable
