AIA-AGL-40MM-Mk1-AUTO
AIA-AGL-40MM-Mk1-AUTO

AIA-AGL-40MM-Mk1-AUTO


40×53 mm HV Automatic platform
Belt-fed 40 mm
automatic system

A fully automatic 40 mm launcher chambered for the 40×53 mm
high-velocity format. The platform combines a recoil-operated open-bolt
mechanism, left-side belt feed and an air-cooled 415 mm barrel for fixed ground
or compatible vehicle installation:
40×53 mm HV architecture.

40×53 mm HV
Fully automatic
Belt-fed
Ground / vehicle mount

Heavy-duty automatic architecture

The platform combines recoil-operated mechanics, an open-bolt layout, left-side belt feed and an air-cooled barrel in a fixed-mount launcher assembly.

01

Recoil-operated mechanism

The automatic mechanism operates by recoil from an open-bolt configuration, as specified by the manufacturer.

02

Belt-fed layout

Linked 40×53 mm HV ammunition is supplied from the left side of the receiver.

03

Mounting versatility

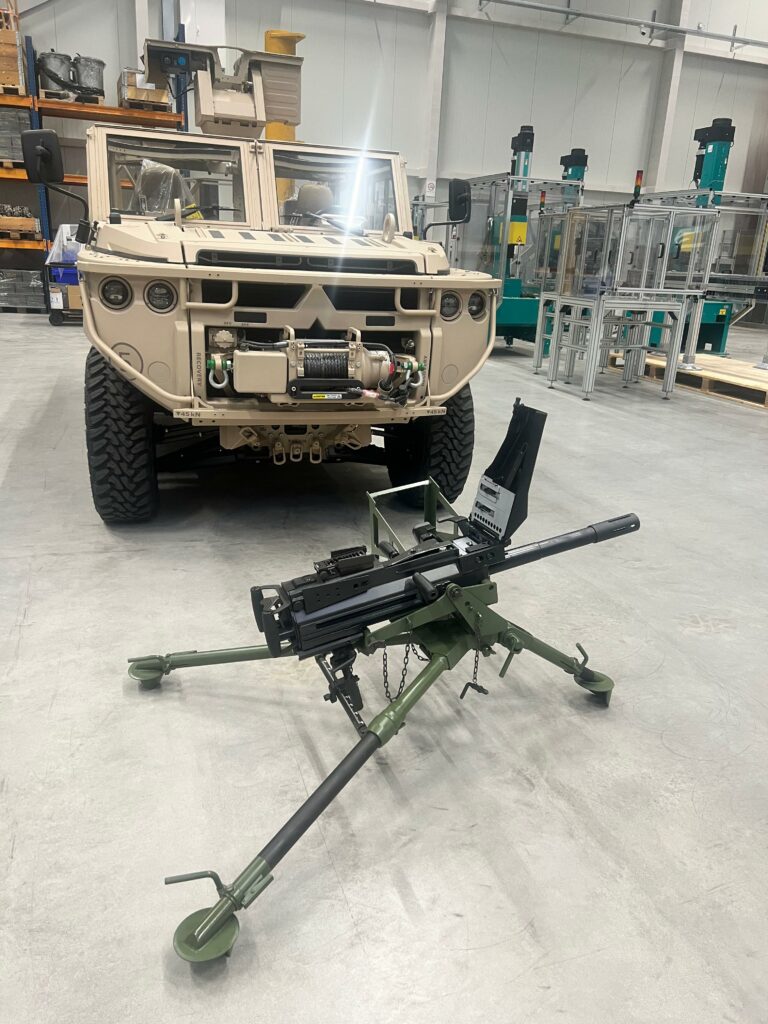

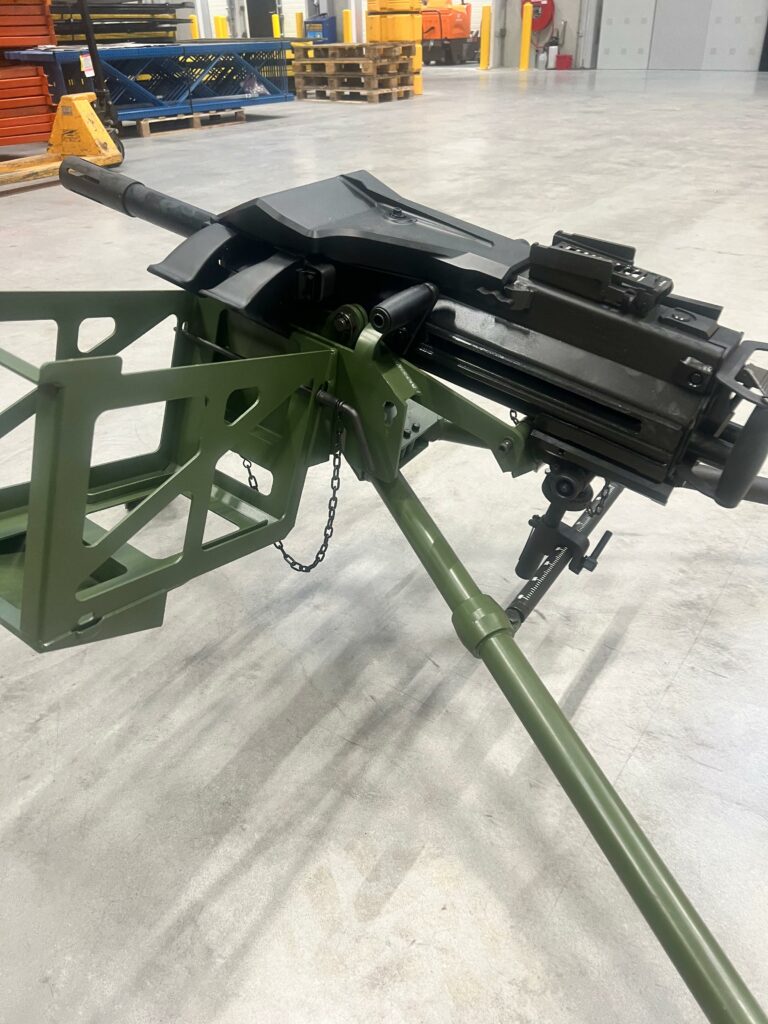

The platform is specified for an M3 tripod or a standardised interface on compatible vehicle installations.

04

Air-cooled barrel

The 415 mm air-cooled barrel is specified with either 18 or 24 right-hand grooves.

Fixed-mount 40 mm configuration

The launcher measures 1,090 mm long, 340 mm wide and 225 mm high. Empty weapon weight is specified at 35 kg, excluding the tripod and accessories.

Manufacturer performance data lists a cyclic rate of 280–380 rounds per minute and a muzzle velocity of 240 m/s, with an approximate effective range of 1,500 m.

TypeFully automatic 40 mm high-velocity launcher
Operating principleRecoil-operated, open bolt
Calibre40×53 mm HV
Fire modeSafe / full automatic
Barrel415 mm; air-cooled
Feed systemBelt-fed
Feed directionLeft side
MountingM3 tripod or compatible vehicle interface
Length1,090 mm
Width340 mm
Height225 mm
Empty weight35 kg; tripod and accessories excluded
Rifling18 or 24 grooves, right-hand
Performance280–380 rpm; 240 m/s
Manufacturer-stated rangeApprox. 1,500 m effective; approx. 2,000 m maximum

Licence-controlled launcher

Sale, possession, transfer, transport and use are permitted only in accordance with all applicable laws and regulations. This information never replaces the official manual, safety instructions or legal obligations. Specifications may vary by configuration and authorised ammunition type.
