HE-Fragmentation Warheads
HE-Fragmentation Warheads
Tactical Warheads / HE-Fragmentation
for Unmanned Systems
Compact HE-fragmentation warhead solutions for UAVs, UGVs, USVs, loitering munitions, and other compatible unmanned platforms.
Each effector is configured around the carrier platform, required target effect, payload capacity, installation envelope, fuze and safety architecture, and operational requirements.
Integrated Configuration
The fragmentation effectors are configured around the required target effect, available payload capacity, installation envelope, fuze architecture, and operational requirements.
The effector, fuze, Safe & Arm system, and platform interface are managed as one controlled configuration.
Lightweight Portfolio
The current HE-fragmentation portfolio includes two lightweight reference configurations for different platform payload capacities.
| Configuration | Effect | Total Weight | Explosive Content | Dimensions | Reference Effective Range |
|---|---|---|---|---|---|

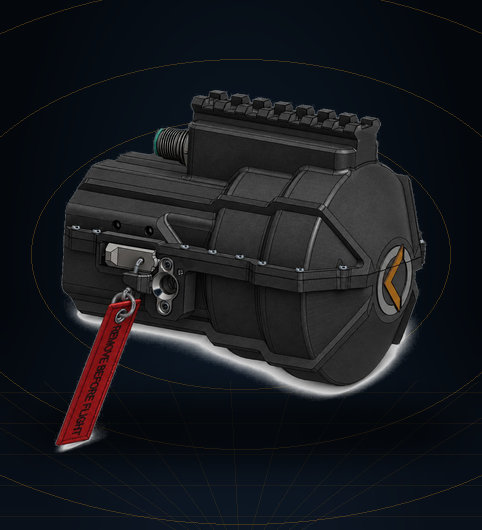

| FRAG 2-INCH | Fragmentation | 0.50 kg | 0.25 kg | Ø50 × 150 mm | 0.5–5 m |

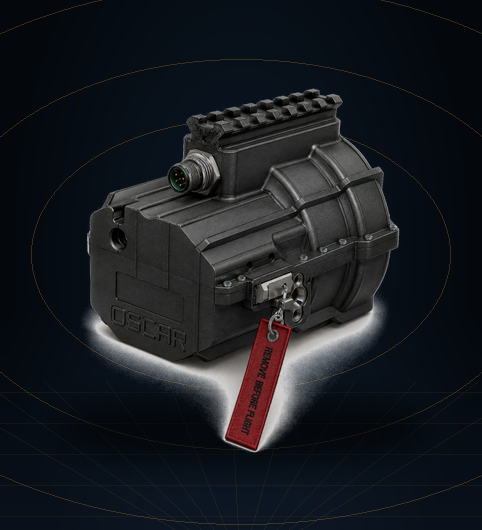

| FRAG 4-INCH | Fragmentation | 0.85 kg | 0.40 kg | Ø70 × 150 mm | 0.5–8 m |
Modular Capability
- Compact and lightweight fragmentation effectors
- Two reference sizes for different platform payload capacities
- Fragmentation and blast effect for selected tactical applications
- Integration with compatible fuze and Safe & Arm systems
- Controlled mechanical, electrical, and operational interfaces
- Suitable for multiple unmanned platform categories
- Configuration-specific engineering and qualification support
Mission Context
HE-fragmentation effectors can be configured for selected applications involving personnel, light vehicles, military assets, and interception missions.
The final application and configuration are determined by the carrier platform, operational concept, and applicable safety requirements.
Carrier Platforms
Integration may be developed for multiple unmanned and guided platform categories.
Platform integration is based on payload capacity, available dimensions, mounting interface, electrical supply, data connectivity, release conditions, and environmental requirements.
Controlled Configuration
The warhead, fuze, safety electronics, and platform interface are assessed and documented as one integrated package.
Contact AI Armaments to discuss the required fragmentation effect, payload envelope, carrier platform, and integration requirements.
