HEAT Anti-Armor Shaped-Charge Warheads
HEAT Anti-Armor Shaped-Charge Warheads
Tactical Warheads / Directed Effect
Warheads
Compact HEAT anti-armor warheads for UAVs, loitering munitions, and other compatible guided or unmanned platforms.
A shaped explosive charge and metallic liner concentrate the primary effect on a defined impact area for localized penetration of a protected target.
Localized Penetration
Unlike an HE-fragmentation warhead, the primary function is localized penetration of a protected target.
The current reference range includes a dedicated shaped-effect configuration and a combined shaped-effect plus fragmentation configuration.
Published Product Data
The two pre-configured effectors provide dedicated and combined-effect options within a compact payload class.
| Configuration | Primary Effect | Total Mass | Explosive Mass | Dimensions | Published Penetration* |
|---|---|---|---|---|---|
| LAV | Shaped effect | 1.30 kg | 0.75 kg | Ø90 × 160 mm | 50–200 mm |
| LAV + FRAG | Shaped effect + fragmentation | 2.20 kg | 0.75 kg | Ø100 × 160 mm | 50–200 mm |
Configuration Range

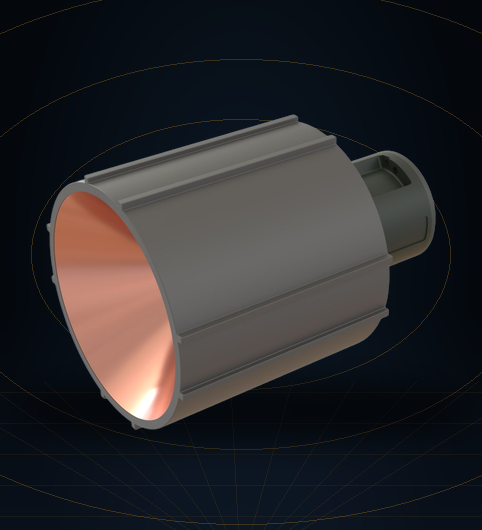

Dedicated Shaped Effect / 1.30 kg
The compact anti-armor option is intended for selected top-attack applications against light armored vehicles and protected military positions where a focused shaped-charge effect is required.
Its Ø90 × 160 mm envelope and 0.75 kg explosive mass provide a defined starting point for payload and interface engineering.
Shaped Effect + Fragmentation / 2.20 kg
The combined configuration adds a secondary fragmentation effect for missions requiring a focused effect on a protected target and an effect around the engagement point.
Its Ø100 × 160 mm reference envelope and higher total mass must be considered when defining payload, mounting, and release requirements.
Both configurations have a published 50–200 mm reference penetration range, subject to the conditions stated above.
Complete Weaponization Package
Each warhead is integrated as part of a complete weaponization package. The engineering scope includes:
Potential carrier platforms include UAVs, loitering munitions, UGVs, and other compatible guided systems. Final suitability is determined for each platform and mission profile.
Selection Guidance
Contact AI Armaments with the carrier-platform payload limit, available installation envelope, intended target class, and interface requirements to define the applicable configuration.
