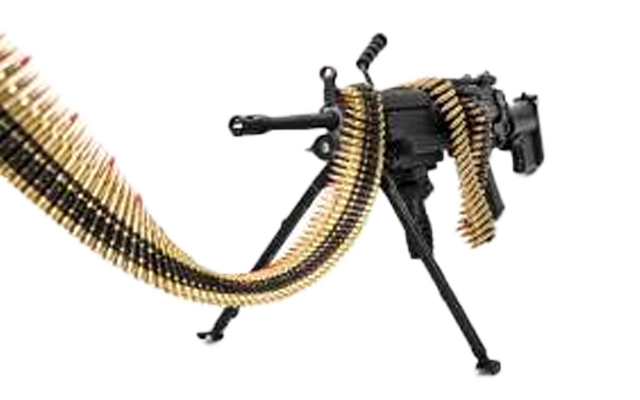

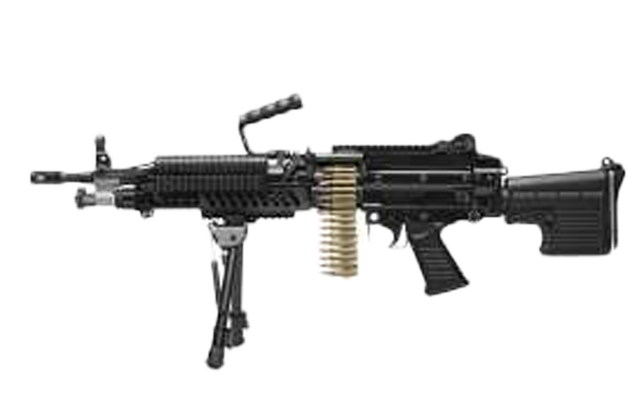

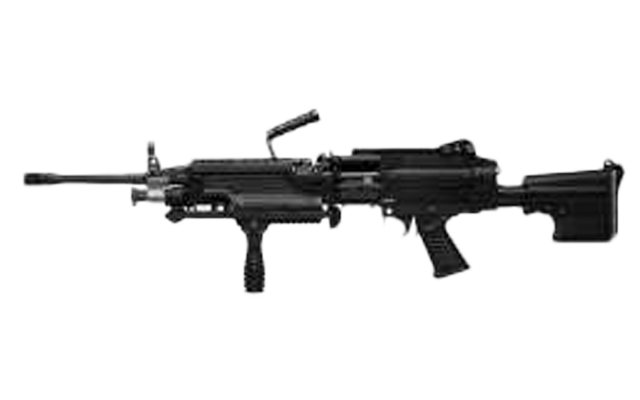

The AIA-MG56 machine gun family, has been designed to provide effective firepower to the law enforcemnet in the operational field. Our AIA-MG56 machine gun models, produced in NATO standards and capable of shooting with 5.56 x 45mm ammunition with STANAG magazine and M27 links. They are capable of responding to every need with 3 different barrel lengths.
With the hand grip added under handguard, two-position gas valve setting mode, hydraulic buffer system and 3-stage adjustable stock, it gives operators the opportunity to shoot comfortably in all conditions.
In addition, the AIA-MG56 machine gun can be used with different optical devices (thermal devices, pointers, etc.) and can also be mounted on armored vehicles and weapon systems.
| AIA-MG56 | AIA-MG56C | AIA-MG56T | |
|---|---|---|---|
| Operating Principle | Gas operated, Rotating Bolt, Long Stroke | Gas operated, Rotating Bolt, Long Stroke | Gas operated, Rotating Bolt, Long Stroke |
| Caliber | 5,56 mm x 45 NATO | 5,56 mm x 45 NATO | 5,56 mm x 45 NATO |
| Barrel Length | 465 mm (18,3″) | 348 mm (13,7″) | 330 mm (13″) |
| Extended Length | 1000 mm (39,3″) | 890 mm (35″) | 870 mm (34,25″) |
| Collapsed Length | 960 mm (37,8″) | 850 mm (33,45″) | 830 mm (32,7″) |
| Weight | 7.900 gr (17,2 lbs) | 6.950 gr (15,3 lbs) | 6.900 gr (15,2 lbs) |
| Muzzle Velocity | 925± 25 m/s | 875± 25 m/s | 875± 25 m/s |
| Cyclic Rate of Fire | 700 – 1000 rpm | 700 – 1000 rpm | 700 – 1000 rpm |
| Effective range | 800 m | 800 m | 800 m |
| Accuracy | H+L 20cm | H+L 20cm | H+L 20cm |
| Firing Mode | Full Automatic | Full Automatic | Full Automatic |
| Gas Valve Setting Mode | 2 modes | Fixed | Fixed |
| Barrel Type | Cold Hammer Forged | Cold Hammer Forged | Cold Hammer Forged |
| Barrel Lifetime | 15.000+ rds | 15.000+ rds | 15.000+ rds |
| Twist Rate | 6RH, 1-7″ | 6RH, 1-7″ | 6RH, 1-7″ |
| Feeding system | Left Fed M27 Link, STANAG Magazine | Left Fed M27 Link, STANAG Magazine | Left Fed M27 Link, STANAG Magazine |
| Stock | Adjustable with Hydraulic Buffer | Adjustable with Hydraulic Buffer | Adjustable with Hydraulic Buffer |
