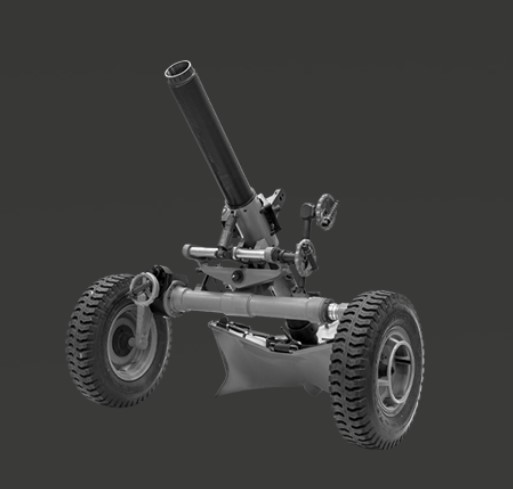

AIA-MTR-120MM-Mk1-STD [RB] – 120 mm Rifled Mortar System
The AIA-MTR-120MM-Mk1-STD [RB] Rifled Mortar is a high-performance indirect fire support system, engineered to meet the demanding requirements of counter-terrorism, conventional, and joint tactical operations.
Designed for precision, range, and reliability, the AIA-MTR-120MM-Mk1-STD [RB] enables effective fire missions across various terrains and combat environments.
Key Features
- Long-range engagement capability
- High rate of fire for sustained support
- Compact and robust design for field deployment
Technical Specifications
| Specification | Value |
|---|---|
| Caliber | 120 mm (Rifled) |
| Maximum Range | 8,180 m |
| Minimum Range | 1,500 m |
| Weight | 570 kg |
| Max. Muzzle Velocity | 365 m/s |
| Rate of Fire | 8–10 rounds/min |
| Max. Gas Pressure | 1,150 kg/cm² |
The AIA-MTR-120MM-Mk1-STD [RB] is ideal for forces requiring rapid deployment, precision firepower, and extended range support in tactical scenarios.
Engineered for effectiveness. Built for the battlefield.
