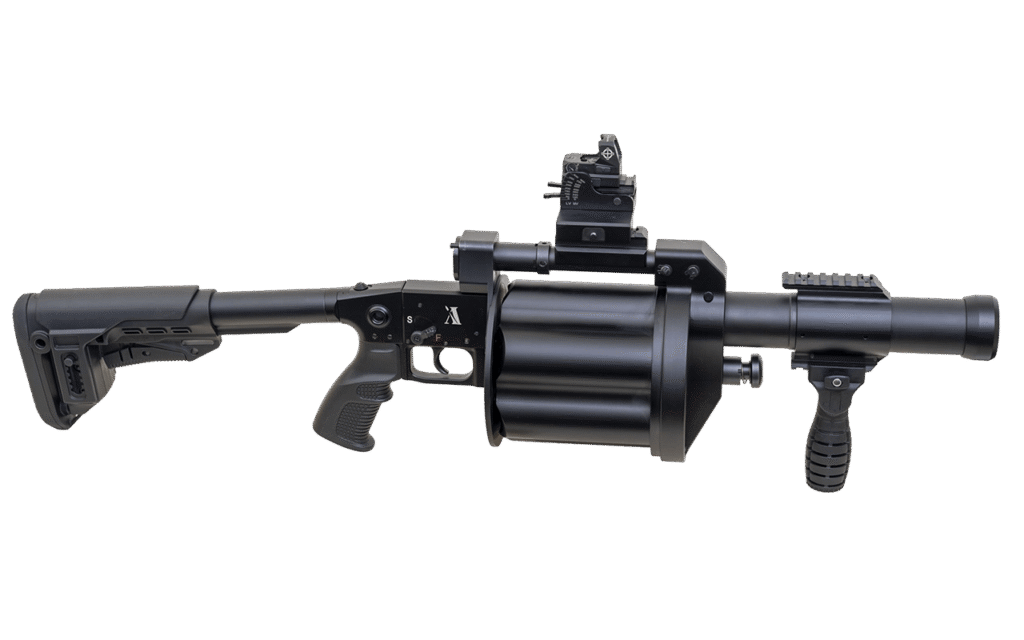

Basic Specifications
Lightweight & Ergonomic Design
Designed for ease of handling and transport, combining comfort with functionality.
Ambidextrous Use
Unique design supports both right- and left-handed operation, featuring a safety latch and double-sided loading.
Dual Mode Operation
Can be attached to an infantry rifle or used as a standalone grenade launcher with a telescopic stock for stability.
Load Indicator
Double-sided indicator shows whether the grenade launcher is loaded or unloaded.
Advanced Sight System
Mechanical sight with optional digital upgrade and night firing capability, mountable on both sides.
Durable Barrel
High wear-resistant, hard chrome-coated barrel made from mid-carbon alloy steel for long service life.
Picatinny Rails
Rails on top and sides enable easy attachment of accessories and additional equipment.
Main Components
- Barrel Assembly
- Lower Receiver Assembly
- Upper Receiver Assembly
- Stock Assembly
- Sight Assembly
Technical Specifications
| Feature | Specification |
|---|---|
| Operation | Double action trigger; loaded by breaking from back of the drum with 6 ammo chambers; semi-automatic gas operation activated by manual drum rotation. |
| Caliber | 40 mm |
| Barrel Length | 203 mm (8”) |
| Drum Cylinder Length | 141 mm (5.5”) |
| Total Length (Stock Extended) | 823 mm (32.4”) |
| Total Length (Stock Collapsed) | 750 mm (29.5”) |
| Total Length (Without Stock) | 490 mm (19.2”) |
| Height (Stock Grip / Under Barrel) | 190 mm (7.5″) / 115 mm (4.5″) |
| Weight (Without / With Stock, Empty) | 5460 g – 5750 g |
| Launcher Dimensions (L × H × W) | 823 mm × 300 mm × 172 mm |
| Mode of Fire | Semi-automatic & manual cycling |
| Sight System | Mechanical (Digital optional) |
| Shooting Mode | Revolver gas-operated semi-auto |
| Muzzle Velocity | LV: 75 m/s, MV: 100 m/s (±5 m/s) |
| Ammunition Feeding | Rotating cylindrical drum |
| Effective Range (max) | LV grenades: 400 m, MV grenades: 800 m |
| Trigger Pull Force | 4.5 – 6 kg (45 – 60 Newton) |
| Trigger | Double-action trigger |
| Barrel Lifespan | 5000 rounds |
| Barrel Profile | 6 grooves, Right-Hand Twist |
| Shooting Pattern | Within 10 m diameter at 200 m |
| Ammunition Type | 40×46 mm Low Velocity (LV) & 40/51 mm Medium Velocity (MV), length <140 mm |
