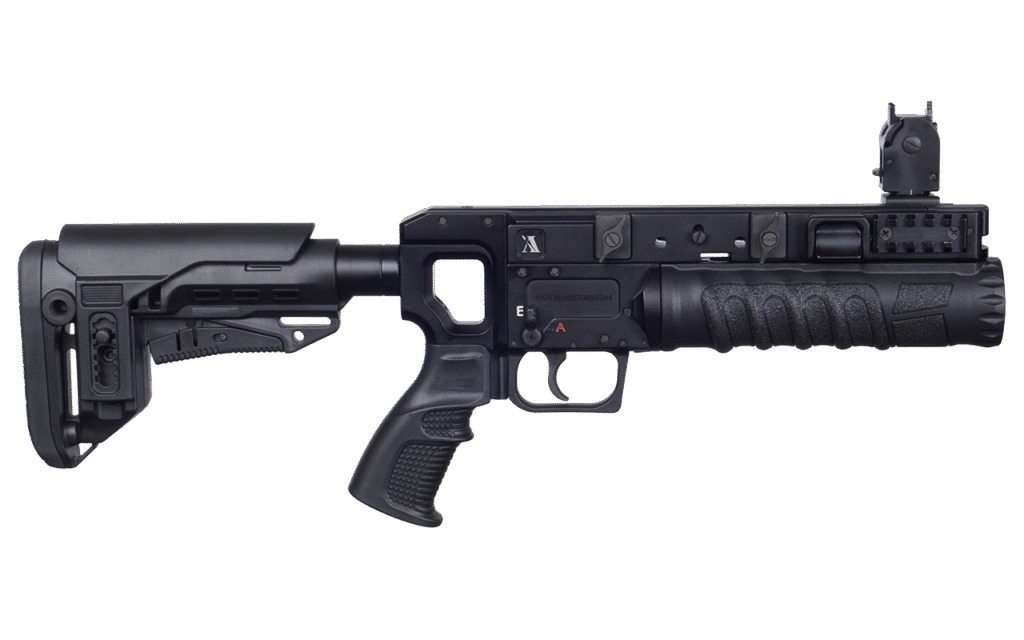

BASIC SPECIFICATIONS
- ⚖️ Light & Ergonomic Design
Engineered for ease of use and effortless transport. - 🔄 Ambidextrous Operation
Unique design accommodates right- and left-hand use with safety latch and double-sided loading. - 🔗 Dual Functionality
Can be attached to an infantry rifle or used standalone with telescopic stock. - 👁️🗨️ Double-Sided Loading Indicator
Clear visual indicator shows if the launcher is loaded or unloaded. - 🌙 Mechanical Sight System
Equipped with night firing capability and mountable on either side. - 🛡️ Durable Barrel
High wear-resistant, hard chrome-coated barrel made from mid-carbon alloy for extended lifespan. - 🛠️ Picatinny Rails
Rails on top and sides for mounting accessories and tactical equipment.
MAIN PARTS OF THE GUN
- 🏹 Barrel Assembly
- 🔩 Lower Receiver Assembly
- 🔧 Upper Receiver Assembly
- 📏 Stock Assembly
- 🎯 Sight Assembly
TECHNICAL SPECIFICATIONS
| Specification | Details |
|---|---|
| Caliber | 40 mm |
| Barrel Length | 191 mm (7.5”) |
| Total Length (Standalone, stock open) | 620 mm (24.4”) |
| Total Length (Standalone, stock closed) | 545 mm (21.5”) |
| Total Length (Attached to assault rifle) | 270 mm (10.6”) |
| Height (With Stock Grip / Under Barrel) | 190 mm (7.5”) / 115 mm (4.5”) |
| Width | 60 mm (2.36”) – 80 mm (3.15”) with manual sight |
| Weight (Standalone, empty) | 2450 g |
| Weight (Attached to rifle with manual sight) | 1600 g |
| Sight System | 100 – 400 m (100 m intervals) |
| Shooting Mode | Single shot (both side loading & positioning wedge) |
| Trigger | Double action |
| Shooting Velocity | 5 – 6 rounds per minute |
| Muzzle Velocity | Minimum 75 m/s (±10 m/s) |
| Effective Range | 400 m |
| Trigger Pull Force | 30 – 60 Newton |
| Cocking Force | 55 – 120 Newton |
| Barrel Profile | SAE4140 Steel, 6 grooves, RH twist 1/48” |
| Barrel Lifespan | 5000 rounds |
| Shooting Pattern | Within 10 m diameter at 200 m |
| NATO Stock Number | 1010270694584 |
| Type of Ammunition | 40×46 mm LV (low velocity) new & old generations, 37/38-40 mm Less Lethal |
