Basic Specifications
🪶 Lightweight & Ergonomic Design
Engineered for ease of use and convenient transport, featuring a compact, balanced form factor.
↔️ Ambidextrous Functionality
Unique design supports both right- and left-handed users with a safety latch and double-sided loading system.
🔄 Versatile Operation

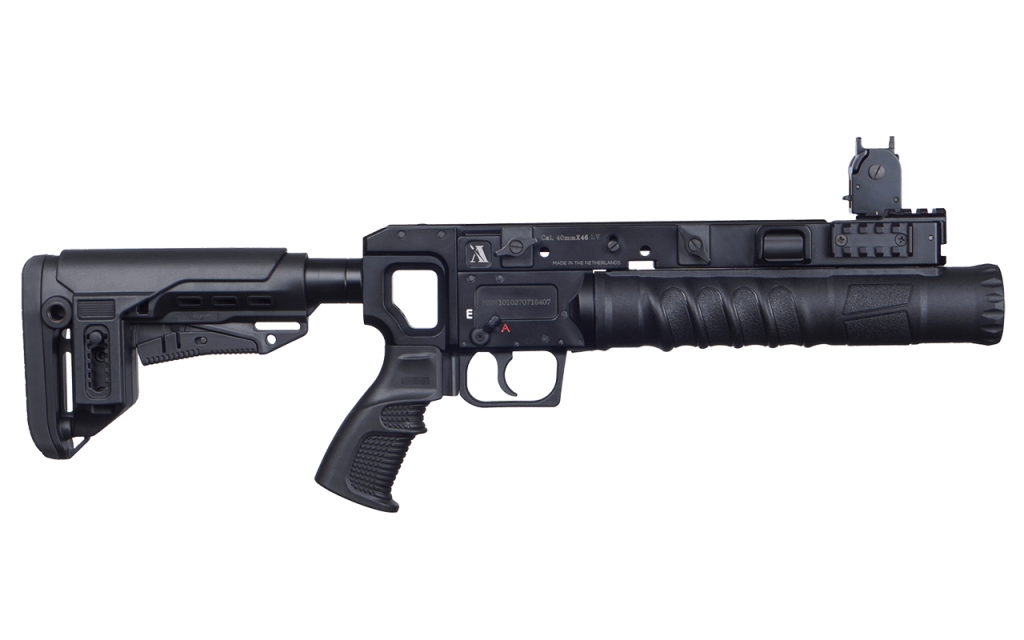

Can be attached to an infantry rifle or used as a standalone grenade launcher equipped with a telescopic stock for added stability.
👁️🗨️ Load Indicator
Double-sided visual indicator clearly shows whether the launcher is loaded or unloaded.
🌙 Advanced Sight System
Mechanical sight with night firing capability, mountable on either side for maximum flexibility.
🛡️ Durable Construction
High wear-resistant, hard chrome-coated barrel made from mid-carbon alloy steel, ensuring an extended barrel lifespan.
🔧 Modular Accessory Rails
Picatinny rails on the top and sides allow mounting of additional tactical equipment.
Main Components
- 🔫 Barrel Assembly
- ⚙️ Lower Receiver Assembly
- ⚙️ Upper Receiver Assembly
- 📏 Stock Assembly
- 🎯 Sight Assembly
Technical Specifications
| ⚙️ Feature | 📊 Specification |
|---|---|
| Caliber | 40 mm |
| Barrel Length | 254 mm (10”) |
| Total Length (Standalone, Stock Open) | 685 mm (27”) |
| Total Length (Standalone, Stock Closed) | 610 mm (24”) |
| Total Length (Attached to MPT-76 Rifle) | 337 mm (13.25”) |
| Height (Stock Grip / Under Barrel) | 190 mm (7.5″) / 115 mm (4.5″) |
| Width | 60 mm (2.36″) – 80 mm (3.15″) with Manual Sight |
| Weight (Standalone, Empty) | 2700 g |
| Weight (Attached to MPT-76 Rifle, Empty) | 1700 g |
| Sight Range | 100–400 m (100 m intervals) |
| Shooting Mode | Single shot (both-side loading & positioning wedge) |
| Trigger | Double Action |
| Rate of Fire | 5–6 rounds per minute |
| Muzzle Velocity | 75–85 m/s (±5 m/s) |
| Effective Range | 400 m / 375 m |
| Trigger Pull Force | 30–60 Newton |
| Cocking Force | 60–120 Newton |
| Barrel Profile | SAE 4140 Steel, 6 grooves, RH twist 1/48″ |
| Barrel Lifespan | 5000 rounds |
| Shooting Pattern | Within 10 m diameter at 200 m |
| NATO Stock Number | 1010-27-071-6407 |
| Ammunition Type | 40×46 mm low-velocity rounds (new & old generation) |
