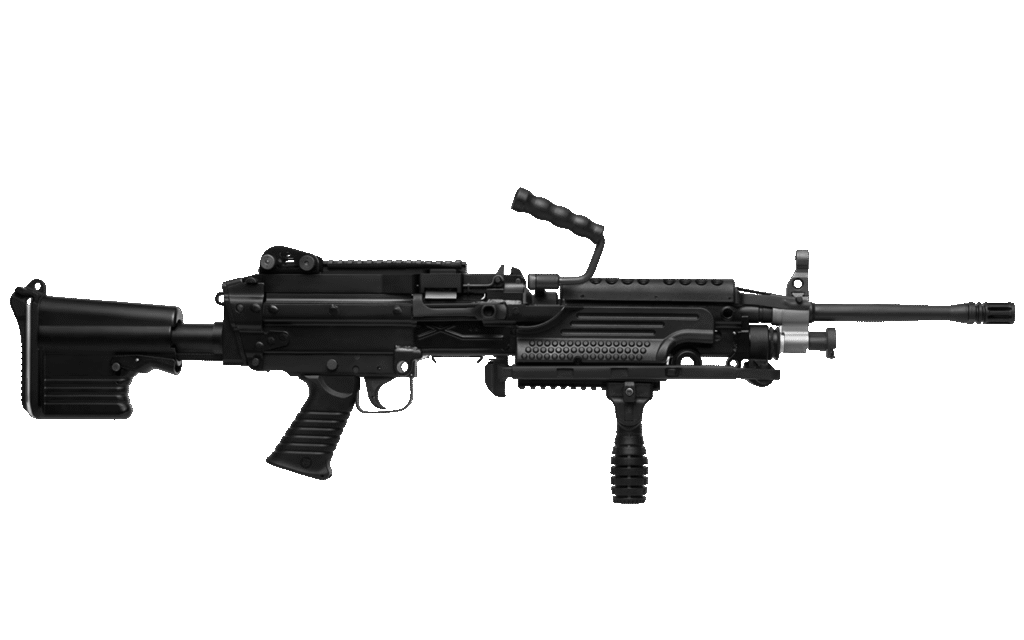

AIA-LMG-5.56×45-Mk1-[BL] – Machine Gun Family
Engineered for law enforcement and tactical operations, the AIA-LMG-5.56×45-Mk1-[BL] machine gun series delivers reliable, high-performance firepower in the field. Manufactured to NATO standards, these versatile machine guns chamber 5.56×45 mm ammunition using STANAG magazines or M27 links, with three barrel lengths to meet diverse operational needs.
Key Features
- Caliber: 5.56×45 mm NATO
Compatible with standard NATO ammunition for logistical ease and interoperability. - Operating System:
Gas-operated with rotating bolt and long-stroke piston for robust reliability. - Barrel Length Options:
- AIA-LMG-5.56×45-Mk1-[BL]: 465 mm (18.3″)
- AIA-LMG-5.56×45-Mk1-[BL]C: 348 mm (13.7″)
- AIA-LMG-5.56×45-Mk1-[BL]T: 330 mm (13″)
Allows operators to select the best configuration for mission requirements.
- Length (Extended/Collapsed):
- AIA-LMG-5.56×45-Mk1-[BL]: 1000 mm (39.3″) / 960 mm (37.8″)
- AIA-LMG-5.56×45-Mk1-[BL]C: 890 mm (35″) / 850 mm (33.45″)
- AIA-LMG-5.56×45-Mk1-[BL]T: 870 mm (34.25″) / 830 mm (32.7″)
Adjustable lengths for portability and combat readiness.
- Weight:
- AIA-LMG-5.56×45-Mk1-[BL]: 7,900 g (17.2 lbs)
- AIA-LMG-5.56×45-Mk1-[BL]C: 6,950 g (15.3 lbs)
- AIA-LMG-5.56×45-Mk1-[BL]T: 6,900 g (15.2 lbs)
Balanced design for operational endurance and control.
- Muzzle Velocity:
- AIA-LMG-5.56×45-Mk1-[BL]: 925 ± 25 m/s
- AIA-LMG-5.56×45-Mk1-[BL]C & T: 875 ± 25 m/s
Ensures effective terminal ballistics and accuracy.
- Cyclic Rate of Fire: 700 – 1000 rounds per minute
High rate suitable for suppressive fire and rapid engagement. - Effective Range: 800 meters
Reliable accuracy and stopping power at extended distances. - Accuracy: H + L 20 cm
Precision targeting capability within operational parameters. - Firing Mode: Full automatic
Continuous fire capability for tactical superiority. - Gas Valve Setting Mode:
- AIA-LMG-5.56×45-Mk1-[BL]: Two-position adjustable gas valve
- AIA-LMG-5.56×45-Mk1-[BL]C & T: Fixed gas valve
Adaptability in gas regulation for optimal cycling.
- Barrel: Cold hammer-forged for durability and extended barrel life (15,000+ rounds).
- Twist Rate: 6 RH, 1-7″
Optimized rifling for 5.56 mm ammunition stability. - Feeding System: Left-fed M27 Link and STANAG magazines
Compatible with common military feed systems. - Stock: Adjustable with hydraulic buffer system
Enhances recoil absorption and operator comfort. - Additional Ergonomics:
Hand grip under the handguard, 3-stage adjustable stock, and two-position gas valve allow comfortable shooting in all conditions. - Accessory Compatibility:
Compatible with thermal sights, laser pointers, and mountable on armored vehicles and weapon systems.
Detailed Specifications Table
| Feature | AIA-LMG-5.56×45-Mk1-[BL] | AIA-LMG-5.56×45-Mk1-[BL]C | AIA-LMG-5.56×45-Mk1-[BL]T |
|---|---|---|---|
| Operating Principle | Gas operated, Rotating Bolt, Long Stroke | Gas operated, Rotating Bolt, Long Stroke | Gas operated, Rotating Bolt, Long Stroke |
| Caliber | 5.56 mm x 45 NATO | 5.56 mm x 45 NATO | 5.56 mm x 45 NATO |
| Barrel Length | 465 mm (18.3″) | 348 mm (13.7″) | 330 mm (13″) |
| Extended Length | 1000 mm (39.3″) | 890 mm (35″) | 870 mm (34.25″) |
| Collapsed Length | 960 mm (37.8″) | 850 mm (33.45″) | 830 mm (32.7″) |
| Weight | 7,900 g (17.2 lbs) | 6,950 g (15.3 lbs) | 6,900 g (15.2 lbs) |
| Muzzle Velocity | 925 ± 25 m/s | 875 ± 25 m/s | 875 ± 25 m/s |
| Cyclic Rate of Fire | 700 – 1000 rounds/min | 700 – 1000 rounds/min | 700 – 1000 rounds/min |
| Effective Range | 800 m | 800 m | 800 m |
| Accuracy | H + L 20 cm | H + L 20 cm | H + L 20 cm |
| Firing Mode | Full Automatic | Full Automatic | Full Automatic |
| Gas Valve Setting Mode | 2 modes (adjustable) | Fixed | Fixed |
| Barrel Type | Cold Hammer Forged | Cold Hammer Forged | Cold Hammer Forged |
| Barrel Lifetime | 15,000+ rounds | 15,000+ rounds | 15,000+ rounds |
| Twist Rate | 6 RH, 1-7″ | 6 RH, 1-7″ | 6 RH, 1-7″ |
| Feeding System | Left Fed M27 Link, STANAG Magazine | Left Fed M27 Link, STANAG Magazine | Left Fed M27 Link, STANAG Magazine |
| Stock | Adjustable with Hydraulic Buffer | Adjustable with Hydraulic Buffer | Adjustable with Hydraulic Buffer |
